How to Drop Array/Map Nested Struct Fields in Databricks

2025/06/11

Environment

Databricks Runtime 16.4LTS

The problem

Just as the title says, sometimes we need to drop some highly nested fields in a Delta Lake table. If the fields only belong to nested structs, then just separating the path by dots is enough (for example a.b.c.d). But when fields are nested in an array or map, then the SQLs are not very intuitive to write.

The official documentations of Delta Lake and Databricks didn’t provide good examples of how to drop a nested struct field within an Array. Though it provides an article about how to do it with the Map type here.

In that article, the correct SQL query to drop the b in data map<int, map<int, struct<a: int, b: string>>> is DROP COLUMN data.value.value.b. The interesting part is where does the value field come from. Yes we all know a map contains key-value pairs and the value comes from the value part of the map, but no documentation mentioned the corresponding name.

Then what if we need to delete a field in a key struct? It’s easy to guess and the answer is using key as in data.key.key.foo.

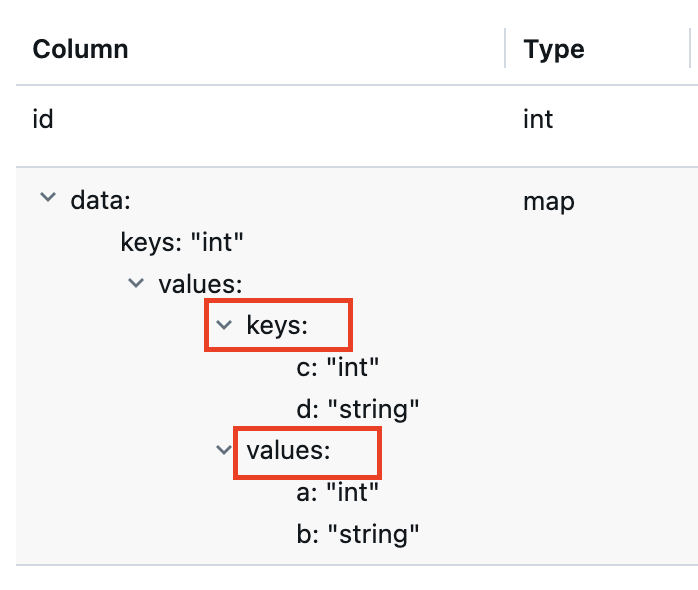

From the Databricks UI table overview tab, we can see a Map structure contains keys and values fields, just corresponding the key and value in above SQLs, which is just a coincidence.

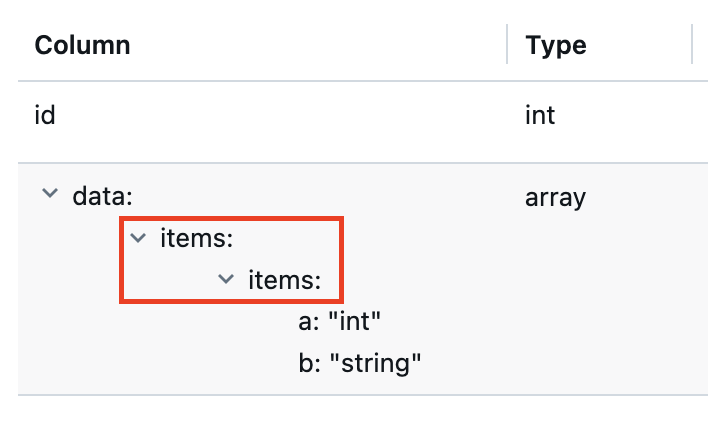

Why this is a coincidence? Because If we check the structure of a array<array<struct<a: int, b: string>>>, we’ll get items:

Then if we remove the plural form and use DROP COLUMN data.item.item.a, an error will occur.

So the keyword is not item for Array.

The true source of the internal field name lies in Parquet’s logical type documentation, where List(alias Array) has an element field, and Map has key and value fields. So the right keyword for Array is element.

<list-repetition> group <name> (LIST) {
  repeated group list {
    <element-repetition> <element-type> element;
  }
}

<map-repetition> group <name> (MAP) {
  repeated group key_value {
    required <key-type> key;
    <value-repetition> <value-type> value;
  }
}

Full examples

Drop map struct fields

CREATE OR REPLACE TABLE nested_table1 (id int, data map<int, map<struct<c: int, d: string>, struct<a: int, b: string>>>);

INSERT INTO nested_table1
SELECT
  111 AS id,
  map(2, map(struct(4, "aaa"), struct(5, "bbb"))) AS data;

ALTER TABLE nested_table1 SET TBLPROPERTIES ('delta.columnMapping.mode' = 'name');

ALTER TABLE nested_table1 DROP COLUMNS (data.value.key.d, data.value.value.a);

SELECT * FROM nested_table1;

Drop array struct fields

CREATE OR REPLACE TABLE nested_table2 (id int, data array<array<struct<a: int, b: string>>>);

INSERT INTO nested_table2
SELECT
  111 AS id,
  array(array(struct(4, "aaa"), struct(5, "bbb"))) AS data;

ALTER TABLE nested_table2 SET TBLPROPERTIES ('delta.columnMapping.mode' = 'name');

ALTER TABLE nested_table2 DROP COLUMN data.element.element.a;

SELECT * FROM nested_table2;
